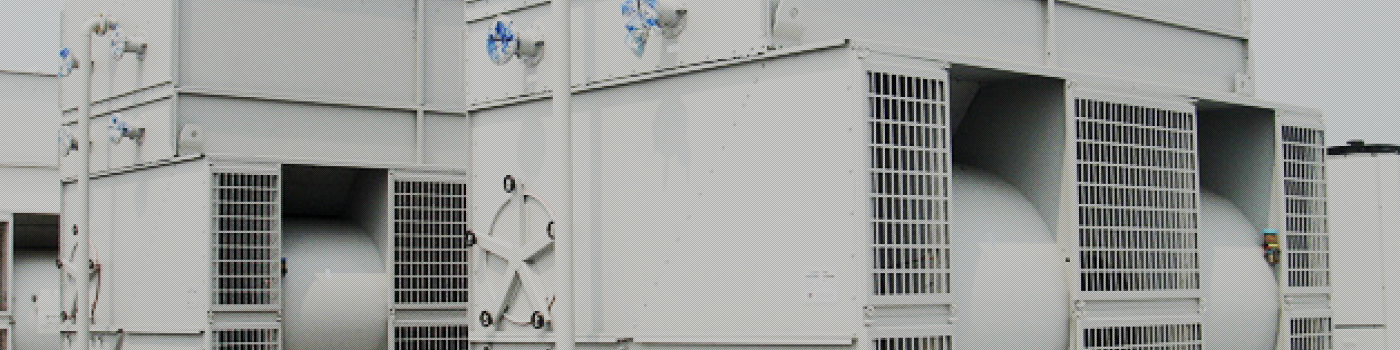

Sirocco Fan Closed Circuit Cooling Tower

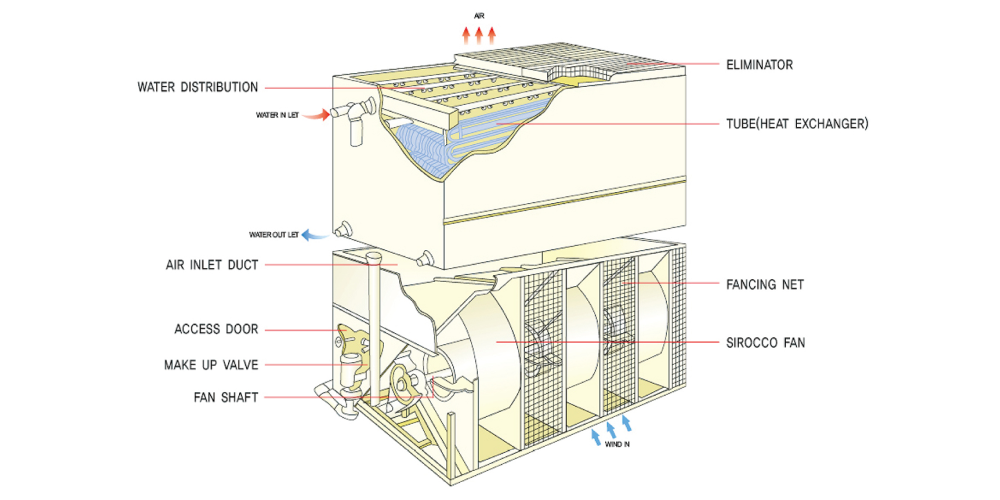

Features and Strengths of Sirocco Fan Closed Circuit Cooling Tower

  • We offer various models with processing coolant flow rates from 100 L/min to 8,120 L/min and they are easy to inspect and handle as they can be disassembled and assembled.

  • Sirocco fans with high static pressure are used to be freely installed inside and outside. The fans are installed close to the wall and do not take up much space.

  • The operating components, including fans and motors, are completely protected from the water distribution structure which allows continuous operation all year round without any concerns of freezing.

  • Multiple Sirocco fans are installed in one direction for smooth operation.

  • The fans are designed to operate partially depending on the season which enables capacity adjustment and energy-saving.

  • The arsenic water of the outlet is filtered and condensed in the eliminator specially designed with a high-efficiency and high-pressure structure that minimizes DR-1FT and coolant evaporation losses.

Specifications
Cooling Capacity(kcal/hr) 195,000 Water flow rate(LPM) 650
Dimensions
Width(mm) 1,207 Length(mm) 3,966
Deck Height(mm) 2,262 Overall Height(mm) 2,767
Fan assembly
Fan Motor
Air volume(㎥/min) 624 Rate output(Hp) 5x2
Type Sirocco Fan Power source 3PH - 220 / 380 / 440 V - 60Hz
Driving type V - BELT Drive
Pump
Drift Water Circulation Rate (l/min) Rate output(Hp)
570 2
Piping
Water Inlet Pipe Water Outlet Pipe Drain Over Flow Make-up (Auto) Make-up (Manual)
100 100 50 50 25 25
Weight
Self-weight (kg) 2,030 Operating Weight (kg) 2,720

※Standard capacity: 1 R/T is 3,900 kcal/hr when the inlet air wet-bulb temperature is 27℃, the inlet water temperature is 37℃, and the outlet water temperature is 32℃.

※The above specifications are subject to change due to product improvement.

Cooling Capacity(kcal/hr) 273,000 Water flow rate(LPM) 910
Dimensions
Width(mm) 1,207 Length(mm) 3,966
Deck Height(mm) 2,516 Overall Height(mm) 3,012
Fan assembly
Fan Motor
Air volume(㎥/min) 654 Rate output(Hp) 7.5x2
Type Sirocco Fan Power source 3PH - 220 / 380 / 440 V - 60Hz
Driving type V - BELT Drive
Pump
Drift Water Circulation Rate (l/min) Rate output(Hp)
570 2
Piping
Water Inlet Pipe Water Outlet Pipe Drain Over Flow Make-up (Auto) Make-up (Manual)
100 100 50 50 25 25
Weight
Self-weight (kg) 2,320 Operating Weight (kg) 3,090

※Standard capacity: 1 R/T is 3,900 kcal/hr when the inlet air wet-bulb temperature is 27℃, the inlet water temperature is 37℃, and the outlet water temperature is 32℃.

※The above specifications are subject to change due to product improvement.

Cooling Capacity(kcal/hr) 312,000 Water flow rate(LPM) 1,040
Dimensions
Width(mm) 2,426 Length(mm) 4,016
Deck Height(mm) 2,938 Overall Height(mm) 3,443
Fan assembly
Fan Motor
Air volume(㎥/min) 1074 Rate output(Hp) 15
Type Sirocco Fan Power source 3PH - 220 / 380 / 440 V - 60Hz
Driving type V - BELT Drive
Pump
Drift Water Circulation Rate (l/min) Rate output(Hp)
1152 5
Piping
Water Inlet Pipe Water Outlet Pipe Drain Over Flow Make-up (Auto) Make-up (Manual)
100x2 100x2 50 50 32 32
Weight
Self-weight (kg) 4,030 Operating Weight (kg) 6,110

※Standard capacity: 1 R/T is 3,900 kcal/hr when the inlet air wet-bulb temperature is 27℃, the inlet water temperature is 37℃, and the outlet water temperature is 32℃.

※The above specifications are subject to change due to product improvement.

Cooling Capacity(kcal/hr) 390,000 Water flow rate(LPM) 1,300
Dimensions
Width(mm) 2,426 Length(mm) 4,016
Deck Height(mm) 3,192 Overall Height(mm) 3,697
Fan assembly
Fan Motor
Air volume(㎥/min) 1248 Rate output(Hp) 20
Type Sirocco Fan Power source 3PH - 220 / 380 / 440 V - 60Hz
Driving type V - BELT Drive
Pump
Drift Water Circulation Rate (l/min) Rate output(Hp)
1152 5
Piping
Water Inlet Pipe Water Outlet Pipe Drain Over Flow Make-up (Auto) Make-up (Manual)
100x2 100x2 50 50 32 32
Weight
Self-weight (kg) 4,620 Operating Weight (kg) 6,860

※Standard capacity: 1 R/T is 3,900 kcal/hr when the inlet air wet-bulb temperature is 27℃, the inlet water temperature is 37℃, and the outlet water temperature is 32℃.

※The above specifications are subject to change due to product improvement.

Cooling Capacity(kcal/hr) 468,000 Water flow rate(LPM) 1,560
Dimensions
Width(mm) 2,426 Length(mm) 4,016
Deck Height(mm) 3,446 Overall Height(mm) 3,951
Fan assembly
Fan Motor
Air volume(㎥/min) 1272 Rate output(Hp) 20
Type Sirocco Fan Power source 3PH - 220 / 380 / 440 V - 60Hz
Driving type V - BELT Drive
Pump
Drift Water Circulation Rate (l/min) Rate output(Hp)
1152 5
Piping
Water Inlet Pipe Water Outlet Pipe Drain Over Flow Make-up (Auto) Make-up (Manual)
100x2 100x2 50 50 32 32
Weight
Self-weight (kg) 5,180 Operating Weight (kg) 7,600

※Standard capacity: 1 R/T is 3,900 kcal/hr when the inlet air wet-bulb temperature is 27℃, the inlet water temperature is 37℃, and the outlet water temperature is 32℃.

※The above specifications are subject to change due to product improvement.

Cooling Capacity(kcal/hr) 585,000 Water flow rate(LPM) 1,950
Dimensions
Width(mm) 2,426 Length(mm) 5,814
Deck Height(mm) 2,938 Overall Height(mm) 3,443
Fan assembly
Fan Motor
Air volume(㎥/min) 2040 Rate output(Hp) 10x3
Type Sirocco Fan Power source 3PH - 220 / 380 / 440 V - 60Hz
Driving type V - BELT Drive
Pump
Drift Water Circulation Rate (l/min) Rate output(Hp)
1854 7.5
Piping
Water Inlet Pipe Water Outlet Pipe Drain Over Flow Make-up (Auto) Make-up (Manual)
100x2 100x2 50 50 32 32
Weight
Self-weight (kg) 5,995 Operating Weight (kg) 9,020

※Standard capacity: 1 R/T is 3,900 kcal/hr when the inlet air wet-bulb temperature is 27℃, the inlet water temperature is 37℃, and the outlet water temperature is 32℃.

※The above specifications are subject to change due to product improvement.

Cooling Capacity(kcal/hr) 702,000 Water flow rate(LPM) 2,340
Dimensions
Width(mm) 5,814 Length(mm) 5,814
Deck Height(mm) 3,192 Overall Height(mm) 3,697
Fan assembly
Fan Motor
Air volume(㎥/min) 2010 Rate output(Hp) 10x3
Type Sirocco Fan Power source 3PH - 220 / 380 / 440 V - 60Hz
Driving type V - BELT Drive
Pump
Drift Water Circulation Rate (l/min) Rate output(Hp)
1854 7.5
Piping
Water Inlet Pipe Water Outlet Pipe Drain Over Flow Make-up (Auto) Make-up (Manual)
100x2 100x2 50 50 32 32
Weight
Self-weight (kg) 6,840 Operating Weight (kg) 10,120

※Standard capacity: 1 R/T is 3,900 kcal/hr when the inlet air wet-bulb temperature is 27℃, the inlet water temperature is 37℃, and the outlet water temperature is 32℃.

※The above specifications are subject to change due to product improvement.

Cooling Capacity(kcal/hr) 780,000 Water flow rate(LPM) 2,600
Dimensions
Width(mm) 5,814 Length(mm) 5,814
Deck Height(mm) 3,446 Overall Height(mm) 3,951
Fan assembly
Fan Motor
Air volume(㎥/min) 1927 Rate output(Hp) 10x3
Type Sirocco Fan Power source 3PH - 220 / 380 / 440 V - 60Hz
Driving type V - BELT Drive
Pump
Drift Water Circulation Rate (l/min) Rate output(Hp)
1854 7.5
Piping
Water Inlet Pipe Water Outlet Pipe Drain Over Flow Make-up (Auto) Make-up (Manual)
100x2 100x2 50 50 32 32
Weight
Self-weight (kg) 7,730 Operating Weight (kg) 11,280

※Standard capacity: 1 R/T is 3,900 kcal/hr when the inlet air wet-bulb temperature is 27℃, the inlet water temperature is 37℃, and the outlet water temperature is 32℃.

※The above specifications are subject to change due to product improvement.

Cooling Capacity(kcal/hr) 877,500 Water flow rate(LPM) 2,925
Dimensions
Width(mm) 2,426 Length(mm) 8,045
Deck Height(mm) 3,697 Overall Height(mm) 3,192
Fan assembly
Fan Motor
Air volume(㎥/min) 2496 Rate output(Hp) 20x2
Type Sirocco Fan Power source 3PH - 220 / 380 / 440 V - 60Hz
Driving type V - BELT Drive
Pump
Drift Water Circulation Rate (l/min) Rate output(Hp)
2304 5x2
Piping
Water Inlet Pipe Water Outlet Pipe Drain Over Flow Make-up (Auto) Make-up (Manual)
100x4 100x4 50x2 50x2 32x2 32x2
Weight
Self-weight (kg) 9,210 Operating Weight (kg) 13,770

※Standard capacity: 1 R/T is 3,900 kcal/hr when the inlet air wet-bulb temperature is 27℃, the inlet water temperature is 37℃, and the outlet water temperature is 32℃.

※The above specifications are subject to change due to product improvement.

Cooling Capacity(kcal/hr) 975,000 Water flow rate(LPM) 3,250
Dimensions
Width(mm) 2,426 Length(mm) 8,046
Deck Height(mm) 3,951 Overall Height(mm) 3,446
Fan assembly
Fan Motor
Air volume(㎥/min) 2544 Rate output(Hp) 20x2
Type Sirocco Fan Power source 3PH - 220 / 380 / 440 V - 60Hz
Driving type V - BELT Drive
Pump
Drift Water Circulation Rate (l/min) Rate output(Hp)
2304 5x2
Piping
Water Inlet Pipe Water Outlet Pipe Drain Over Flow Make-up (Auto) Make-up (Manual)
100x4 100x4 50x2 50x2 32x2 32x2
Weight
Self-weight (kg) 10,450 Operating Weight (kg) 15,340

※Standard capacity: 1 R/T is 3,900 kcal/hr when the inlet air wet-bulb temperature is 27℃, the inlet water temperature is 37℃, and the outlet water temperature is 32℃.

※The above specifications are subject to change due to product improvement.

Cooling Capacity(kcal/hr) 1,170,000 Water flow rate(LPM) 3,900
Dimensions
Width(mm) 2,426 Length(mm) 11,642
Deck Height(mm) 3,443 Overall Height(mm) 2,938
Fan assembly
Fan Motor
Air volume(㎥/min) 4080 Rate output(Hp) 10x6
Type Sirocco Fan Power source 3PH - 220 / 380 / 440 V - 60Hz
Driving type V - BELT Drive
Pump
Drift Water Circulation Rate (l/min) Rate output(Hp)
3708 7.5x2
Piping
Water Inlet Pipe Water Outlet Pipe Drain Over Flow Make-up (Auto) Make-up (Manual)
100x4 100x4 50x2 50x2 32x2 32x2
Weight
Self-weight (kg) 11,990 Operating Weight (kg) 18,040

※Standard capacity: 1 R/T is 3,900 kcal/hr when the inlet air wet-bulb temperature is 27℃, the inlet water temperature is 37℃, and the outlet water temperature is 32℃.

※The above specifications are subject to change due to product improvement.

Cooling Capacity(kcal/hr) 1,365,000 Water flow rate(LPM) 4,550
Dimensions
Width(mm) 2,426 Length(mm) 11,642
Deck Height(mm) 3,697 Overall Height(mm) 3,192
Fan assembly
Fan Motor
Air volume(㎥/min) 4020 Rate output(Hp) 10x6
Type Sirocco Fan Power source 3PH - 220 / 380 / 440 V - 60Hz
Driving type V - BELT Drive
Pump
Drift Water Circulation Rate (l/min) Rate output(Hp)
3708 7.5x2
Piping
Water Inlet Pipe Water Outlet Pipe Drain Over Flow Make-up (Auto) Make-up (Manual)
100x4 100x4 50x2 50x2 32x2 32x2
Weight
Self-weight (kg) 13,670 Operating Weight (kg) 20,240

※Standard capacity: 1 R/T is 3,900 kcal/hr when the inlet air wet-bulb temperature is 27℃, the inlet water temperature is 37℃, and the outlet water temperature is 32℃.

※The above specifications are subject to change due to product improvement.

Cooling Capacity(kcal/hr) 1,560,000 Water flow rate(LPM) 5,200
Dimensions
Width(mm) 2,426 Length(mm) 11,642
Deck Height(mm) 3,951 Overall Height(mm) 3,446
Fan assembly
Fan Motor
Air volume(㎥/min) 3852 Rate output(Hp) 10x6
Type Sirocco Fan Power source 3PH - 220 / 380 / 440 V - 60Hz
Driving type V - BELT Drive
Pump
Drift Water Circulation Rate (l/min) Rate output(Hp)
3708 7.5x2
Piping
Water Inlet Pipe Water Outlet Pipe Drain Over Flow Make-up (Auto) Make-up (Manual)
100x4 100x4 50x2 50x2 32x2 32x2
Weight
Self-weight (kg) 15,460 Operating Weight (kg) 22,550

※Standard capacity: 1 R/T is 3,900 kcal/hr when the inlet air wet-bulb temperature is 27℃, the inlet water temperature is 37℃, and the outlet water temperature is 32℃.

※The above specifications are subject to change due to product improvement.

Cooling Capacity(kcal/hr) 1,755,000 Water flow rate(LPM) 5,850
Dimensions
Width(mm) 3,000 Length(mm) 12,074
Deck Height(mm) 3,933 Overall Height(mm) 3,428
Fan assembly
Fan Motor
Air volume(㎥/min) 5892 Rate output(Hp) 20x4
Type Sirocco Fan Power source 3PH - 220 / 380 / 440 V - 60Hz
Driving type V - BELT Drive
Pump
Drift Water Circulation Rate (l/min) Rate output(Hp)
5604 10x2
Piping
Water Inlet Pipe Water Outlet Pipe Drain Over Flow Make-up (Auto) Make-up (Manual)
100x4 100x4 50x2 65x2 40x2 40x2
Weight
Self-weight (kg) 17,250 Operating Weight (kg) 24,320

※Standard capacity: 1 R/T is 3,900 kcal/hr when the inlet air wet-bulb temperature is 27℃, the inlet water temperature is 37℃, and the outlet water temperature is 32℃.

※The above specifications are subject to change due to product improvement.

Cooling Capacity(kcal/hr) 2,145,000 Water flow rate(LPM) 7,150
Dimensions
Width(mm) 3,000 Length(mm) 12,074
Deck Height(mm) 4,187 Overall Height(mm) 3,682
Fan assembly
Fan Motor
Air volume(㎥/min) 6174 Rate output(Hp) 25x4
Type Sirocco Fan Power source 3PH - 220 / 380 / 440 V - 60Hz
Driving type V - BELT Drive
Pump
Drift Water Circulation Rate (l/min) Rate output(Hp)
5604 10x2
Piping
Water Inlet Pipe Water Outlet Pipe Drain Over Flow Make-up (Auto) Make-up (Manual)
100x4 100x4 50x2 65x2 40x2 40x2
Weight
Self-weight (kg) 20,170 Operating Weight (kg) 28,060

※Standard capacity: 1 R/T is 3,900 kcal/hr when the inlet air wet-bulb temperature is 27℃, the inlet water temperature is 37℃, and the outlet water temperature is 32℃.

※The above specifications are subject to change due to product improvement.

Cooling Capacity(kcal/hr) 2,340,000 Water flow rate(LPM) 7,800
Dimensions
Width(mm) 3,000 Length(mm) 12,074
Deck Height(mm) 4,441 Overall Height(mm) 3,936
Fan assembly
Fan Motor
Air volume(㎥/min) 6006 Rate output(Hp) 25x4
Type Sirocco Fan Power source 3PH - 220 / 380 / 440 V - 60Hz
Driving type V - BELT Drive
Pump
Drift Water Circulation Rate (l/min) Rate output(Hp)
5604 10x2
Piping
Water Inlet Pipe Water Outlet Pipe Drain Over Flow Make-up (Auto) Make-up (Manual)
100x4 100x4 50x2 65x2 40x2 40x2
Weight
Self-weight (kg) 22,680 Operating Weight (kg) 31,400

※Standard capacity: 1 R/T is 3,900 kcal/hr when the inlet air wet-bulb temperature is 27℃, the inlet water temperature is 37℃, and the outlet water temperature is 32℃.

※The above specifications are subject to change due to product improvement.
